We modernized this once the hard way.Then we did it again in a fraction of the time.
The Ozone Widget Framework is a DoD and NSA-originated widget portal. Modernizing it once took us years. We rebuilt the whole application from a clean foundation, with local LLMs in a closed environment, in a fraction of the time.
The before and after
Same load-bearing ideas. A completely modern foundation.

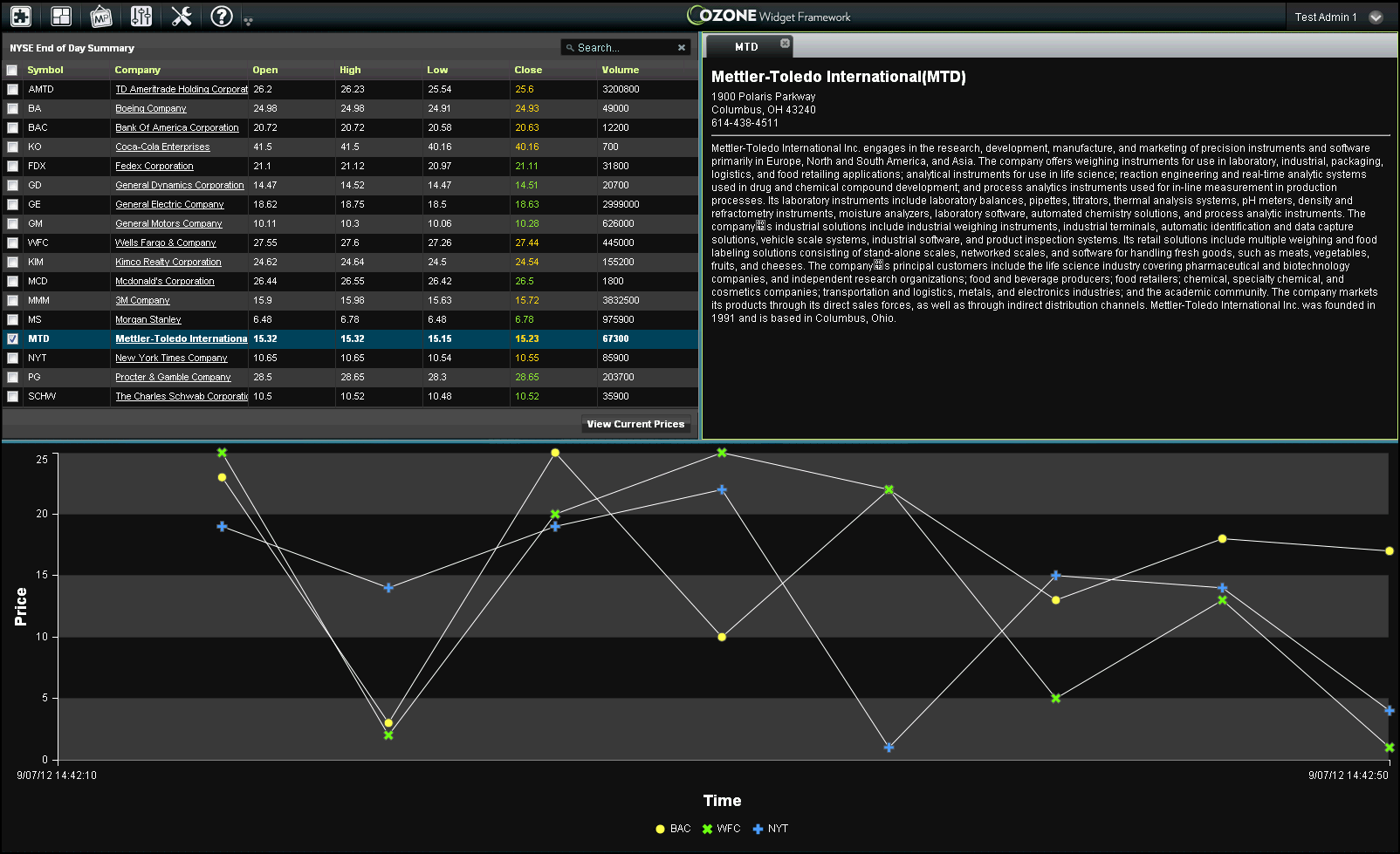

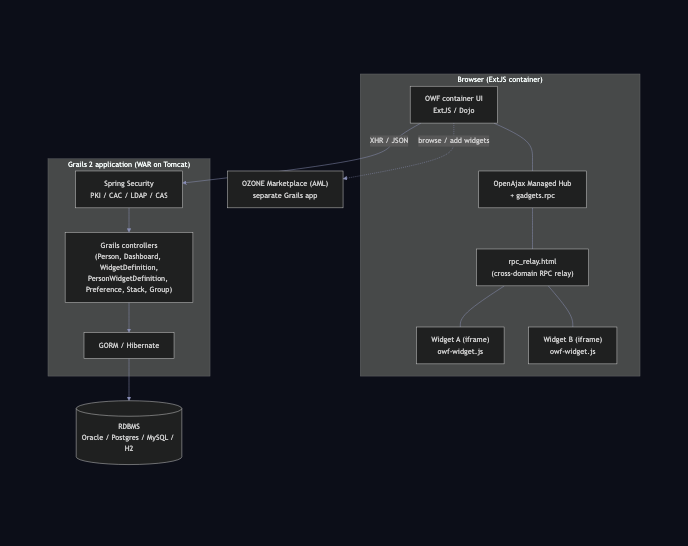

The original framework. Grails 2, ExtJS and Dojo, a retired stack. Image courtesy of the upstream OWF project, owfgoss.org.

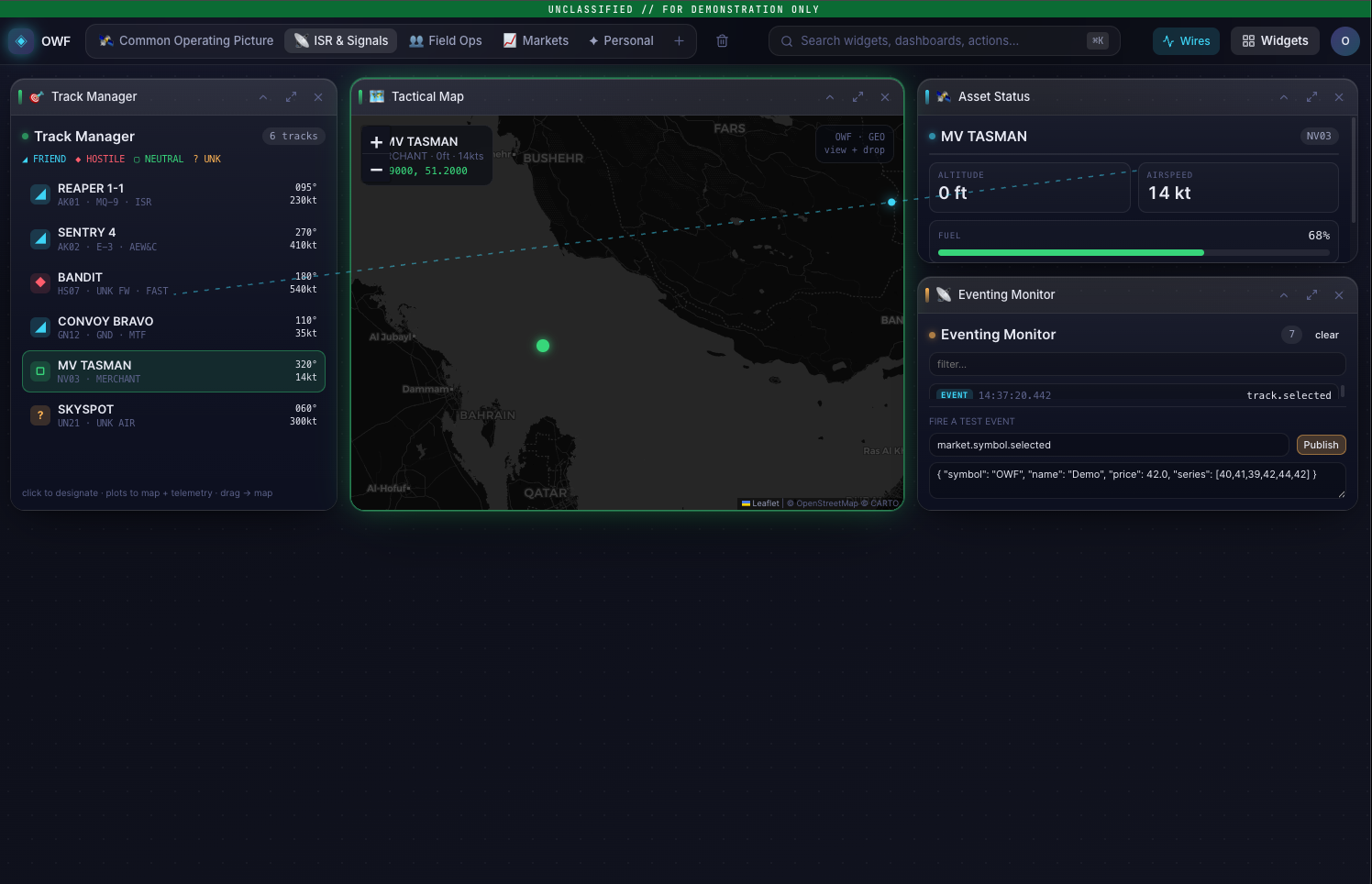

Our rebuild. End-to-end TypeScript, React 18, a live event bus, and a tactical Common Operating Picture out of the box.
The first campaign
Years of headaches against legacy software.
The original modernization was a multi-year effort. Legacy code, outdated documentation, missing stakeholder requirements, and shifting standards constraints made every step a slog. Large teams, long timelines, and slow feedback loops were simply the cost of working with software that the industry had already left behind.
Everything we learned doing it the hard way became the guardrails for doing it fast.
The second campaign
A clean rebuild, with local models, in a closed environment.
Several years later we rewrote the same application from scratch. We started with parallel research into the real OWF semantics, wrote a design brief and an implementation plan, and only then built. The work ran on local LLMs inside a closed environment the entire time: no mission data left the room, and no sensitive context touched a public model. The AI accelerated the building. It never touched the data.
The result keeps OWF's developer contract intact, a widget is still "a web page plus a descriptor," while replacing the retired implementation with a modern, test-backed, well-documented stack. Headless Playwright end-to-end tests prove the inter-widget wiring and caught two real bugs before review.
Legacy to modern
The stack, layer by layer.
react-grid-layout gridInside the rebuild

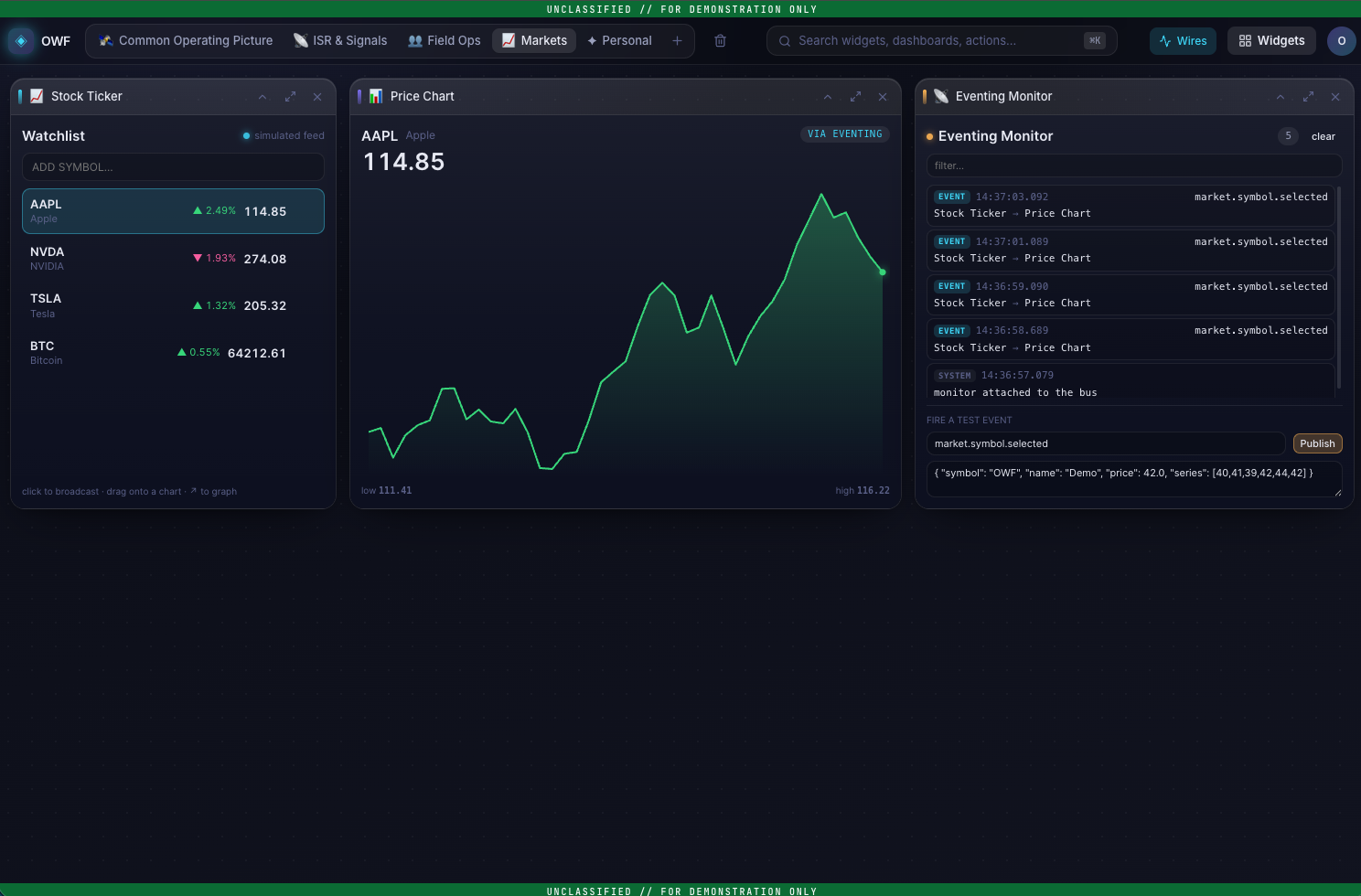

Ten widgets, five dashboards, wired live.
eventing · intents · drag-and-drop · preferences · launcher · marketplace
What the rebuild shipped
Faster, and built to survive review.
- Built with local LLMs, closed network
- End-to-end TypeScript
- Design brief + implementation plan first
- Eventing, intents, drag-and-drop
- Preferences, launcher, marketplace
- Capability-token security model
- Swappable JSON / SQLite / Postgres store
- Headless Playwright E2E
- Caught two real bugs before review

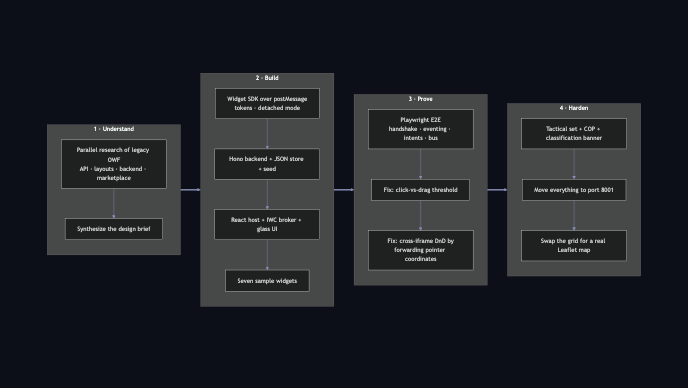

How it actually went

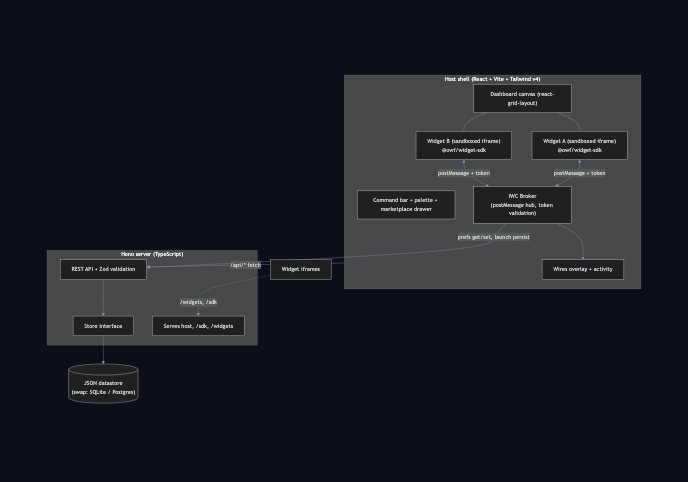

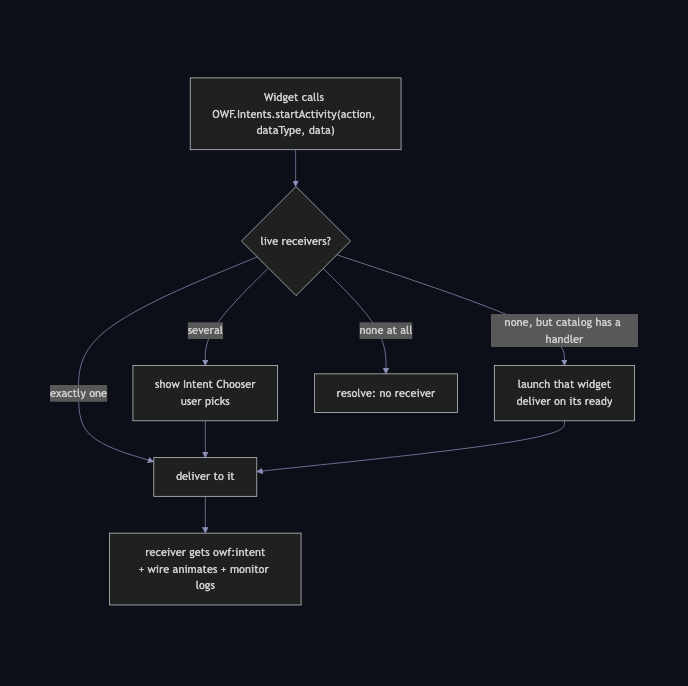

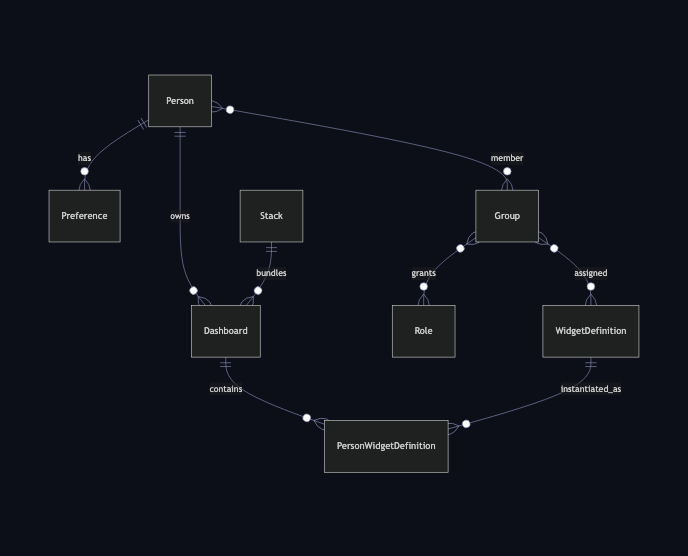

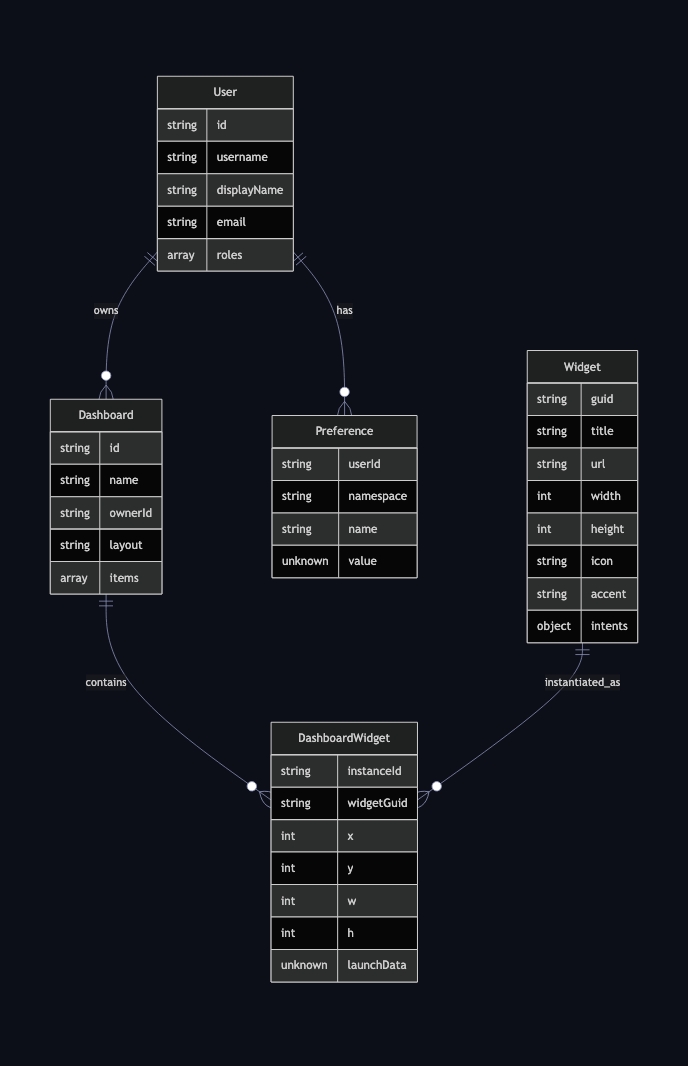

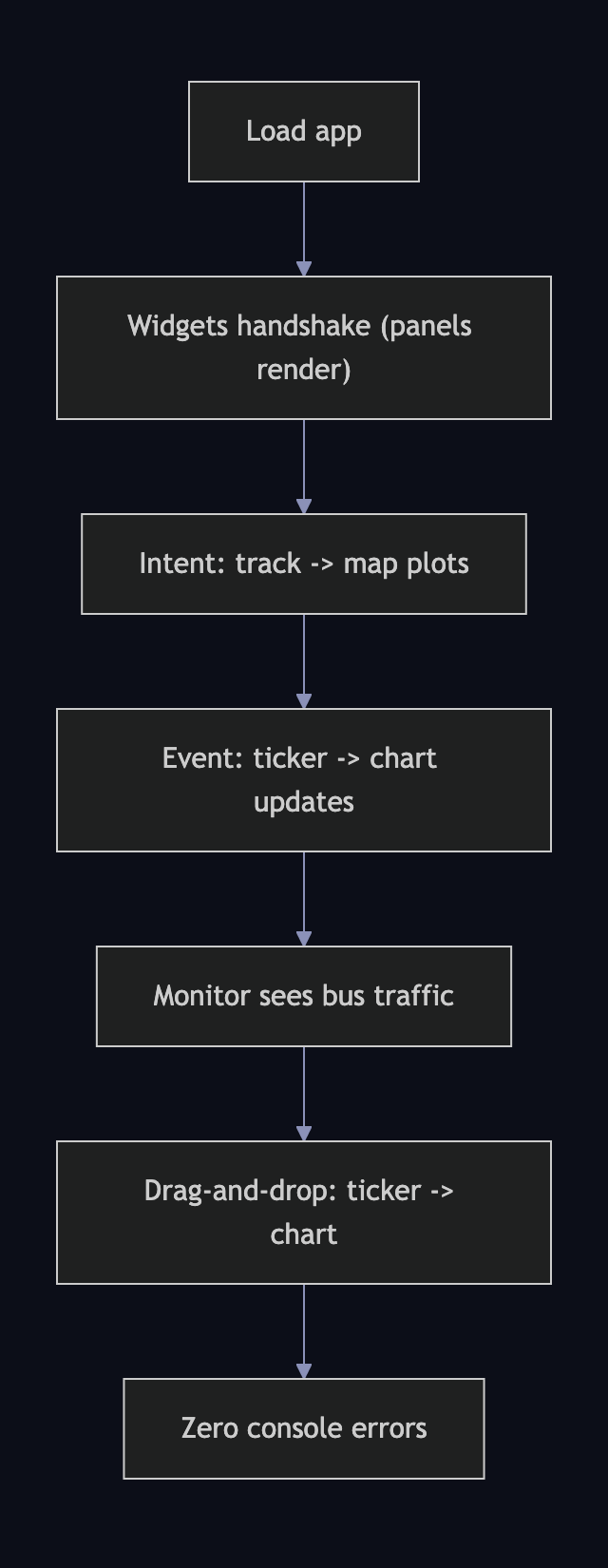

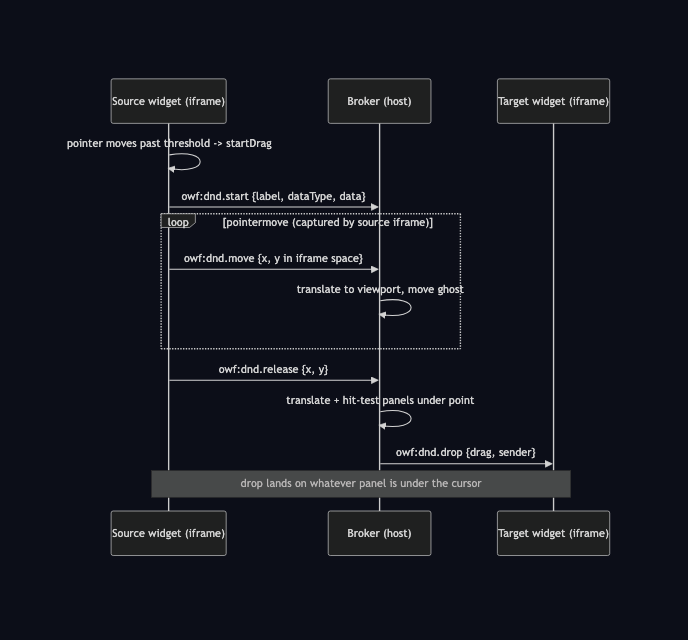

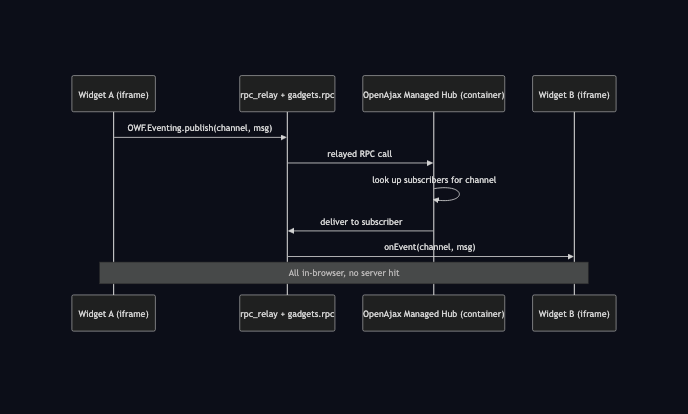

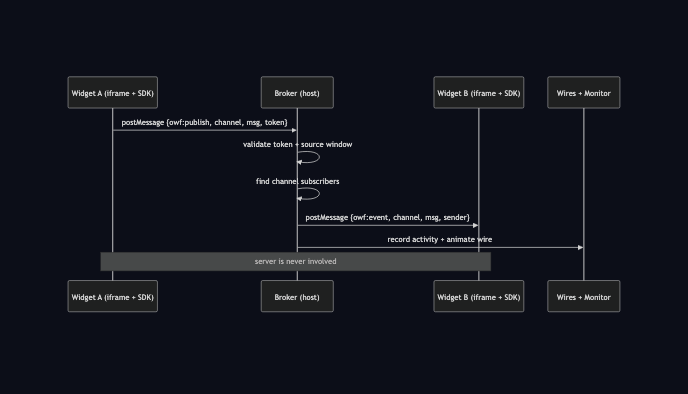

Ten diagrams, one rebuild.
legacy teardown, modern architecture, and the wiring in between
Click any diagram to view it full size. All ten render in context inside the implementation plan, alongside endpoint mappings, the domain model, and the two bugs the end-to-end run caught and how we fixed them.
Read the record
The full case study, in detail.
Architecture diagrams, endpoint mappings, IWC sequence diagrams, the domain model, and the phases the build actually went through.
